Testing with Desk

Desk can spin up a local Kubernetes cluster with skew protection pre-configured. This is the easiest way to try out versioned deployments before going to production.

Desk ships two profiles that enable skew protection — they are alternatives, pick whichever fits:

Profile	Runs ICC / Machinist / Workflow from	Use when
oss	Released container images	You just want to try skew protection — no source checkout or build required.
skew-protection	Local repositories with hot reload	You are developing or debugging ICC itself and want your local changes running live.

Both profiles install Envoy Gateway as the Gateway API controller, create a Gateway resource, and enable skew protection with the same shorter timeouts suited for testing. The rest of this guide works identically for either profile — just substitute --profile oss or --profile skew-protection in the commands.

Prerequisites

Follow the Getting Started guide to install Desk and configure your environment (GitHub OAuth, .env file, /etc/hosts).

Then set up one of the two profiles below.

Option A — oss profile (released images)

No source checkout is needed. Desk pulls the released ICC, Machinist, and Workflow images, so this is the fastest way to get a working cluster. Start it with:

desk cluster up --profile oss

Option B — skew-protection profile (local hot reload)

This profile runs ICC, Machinist, and Workflow with hot reload from local repositories (it extends Desk’s development profile). Clone the three repositories (all public) and point the matching Desk .env variable at each checkout:

Variable	Clone URL
ICC_REPO	https://github.com/platformatic/intelligent-command-center.git
MACHINIST_REPO	https://github.com/platformatic/machinist.git
WORKFLOW_REPO	https://github.com/platformatic/platformatic-world.git

WORKFLOW_REPO must point to the platformatic-world monorepo root, not packages/workflow: Desk mounts the repo at /app and runs the workflow service from /app/packages/workflow.

Hot reload runs the local repos directly, and some ICC services (e.g. cluster-manager) require() compiled .js files that only exist as TypeScript in a fresh checkout. Build the ICC repo once before starting the cluster:

cd "$ICC_REPO"
npm run build:dev

Then start the cluster:

desk cluster up --profile skew-protection

Verify the cluster

Either profile creates a local k3d cluster with all the necessary components. Verify that the Gateway is programmed:

kubectl get gateway platformatic -n platformatic

The PROGRAMMED column must be True.

Profile settings

Both the oss and skew-protection profiles enable skew protection with the same testing-friendly defaults. These values can be customized by editing the profile file:

Setting	Profile Default	Production Default	Description
skew_protection.enable	true	false	Enables skew protection
skew_protection.http_grace_period_ms	30000 (30 sec)	1800000 (30 min)	Grace period — HTTP version kept alive unconditionally
skew_protection.http_max_alive_ms	180000 (3 min)	86400000 (24h)	Max alive — hard ceiling before force-expiration
skew_protection.workflow_grace_period_ms	300000 (5 min)	3600000 (1h)	Grace period for versions with active workflows
skew_protection.workflow_max_alive_ms	900000 (15 min)	259200000 (72h)	Max alive ceiling for workflow versions
skew_protection.check_interval_ms	10000 (10 sec)	60000 (1 min)	How often ICC checks if draining versions can be expired
skew_protection.traffic_window_ms	30000 (30 sec)	300000 (5 min)	Prometheus query window for traffic measurement
skew_protection.cookie_max_age	43200 (12h)	43200 (12h)	Browser cookie lifetime in seconds
skew_protection.auto_cleanup	false	false	Whether to delete expired Deployments and Services

Deploy version 1

Use the --version flag to deploy a versioned application. Desk automatically sets the correct app.kubernetes.io/name and plt.dev/version labels:

desk deploy --dir ./my-app --version v1 --profile skew-protection

Wait for the pod to be ready:

kubectl get pods -n platformatic -l app.kubernetes.io/name=my-app

Verify that ICC created the HTTPRoute:

kubectl get httproute -n platformatic

Open your browser and navigate to https://svcs.gw.plt/my-app/. Use the browser’s developer tools (Network tab) to check that the response includes a Set-Cookie: __plt_dpl=v1; ... header. Your browser is now pinned to version 1.

Deploy version 2

desk deploy --dir ./my-app --version v2 --profile skew-protection

Wait for both pods to be running:

kubectl get pods -n platformatic -l app.kubernetes.io/name=my-app

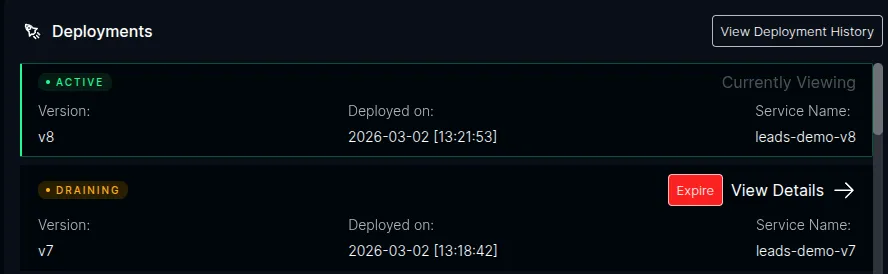

After ICC detects the new version, open the ICC dashboard at https://icc.plt/ and navigate to the Watt detail page for your application. The Deployments panel shows the version lifecycle in real time — the new version as Active and the previous version as Draining:

Verify routing

Existing session — refresh the page in the same browser. Since the __plt_dpl=v1 cookie is still set, your requests continue to be routed to version 1. You can verify this in the developer tools — no new Set-Cookie header is returned.

New session — open a new incognito/private window and navigate to https://svcs.gw.plt/my-app/. This simulates a new visitor with no cookie. The response should include Set-Cookie: __plt_dpl=v2; ..., pinning this session to version 2.

Expiring a version

Draining versions are expired automatically when ICC detects zero traffic (after the grace period) or when the max-alive ceiling is reached. With the testing profile’s short timeouts (30-second grace period, 3-minute max alive), this happens fairly quickly.

For demos and testing, you can also expire a version immediately by clicking the Expire button next to the draining version in the ICC dashboard. This skips the grace period and triggers the cleanup right away — the HTTPRoute rules for that version are removed and the Deployment is scaled to 0 replicas.

After expiration, the dashboard shows the version as Expired:

Once expired, any browser still holding the old __plt_dpl=v1 cookie will be routed to version 2 on the next request, and a new Set-Cookie: __plt_dpl=v2 replaces the stale cookie.

Hostname routing

By default, Desk deploys apps under a path prefix on a shared hostname (https://svcs.gw.plt/<app-name>/). This works for most apps, but some frameworks — notably Next.js — make root-relative client-side fetch calls (e.g., fetch('/api/generate')) that break when the app is served under a sub-path.

The --hostname flag gives the app its own dedicated hostname with a root path prefix, matching how platforms like Vercel deploy apps:

desk deploy --dir ./my-app --version v1 --hostname my-app.plt --profile skew-protection

This tells ICC to create an HTTPRoute with hostnames: ["my-app.plt"] and a / path prefix instead of hostnames: ["svcs.gw.plt"] with /<app-name>.

When to use --hostname

Scenario	Flag
App works fine under a sub-path	No flag needed (default path-prefix routing)
App makes root-relative API calls (e.g., Next.js)	--hostname my-app.plt
App expects to own its entire domain	--hostname my-app.plt

/etc/hosts entry

Add the hostname to your /etc/hosts file so it resolves to the local cluster:

echo "127.0.0.1 my-app.plt" | sudo tee -a /etc/hosts

Example: versioned deploy with hostname

# Deploy v1
desk deploy --dir ./birthday-card-generator \
  --profile skew-protection \
  --version v1 \
  --hostname birthday-card-generator.plt

# Deploy v2
desk deploy --dir ./birthday-card-generator \
  --profile skew-protection \
  --version v2 \
  --hostname birthday-card-generator.plt

# App is available at https://birthday-card-generator.plt/
# API routes like /api/generate work correctly

Skew protection works the same way — new visitors get pinned to v2 via the __plt_dpl cookie, while existing sessions on v1 continue to be routed there until the version is expired.

Testing workflows

The skew-protection profile also enables the Workflow Service, so you can test versioned workflow deployments alongside HTTP skew protection.

Deploy a workflow app

Workflow apps need the WORKFLOW_TARGET_WORLD environment variable in their Dockerfile. Desk auto-detects this and sets the plt.dev/workflow: "true" label automatically:

desk deploy --dir ./my-workflow-app \
  --version v1 \
  --hostname my-workflow-app.plt \
  --profile skew-protection

Add the hostname to /etc/hosts:

echo "127.0.0.1 my-workflow-app.plt" | sudo tee -a /etc/hosts

Trigger a workflow

Open https://my-workflow-app.plt/ and trigger a workflow through your app’s UI or API. In the ICC dashboard at https://icc.plt/, navigate to your Watt’s detail page — the Workflows tab shows runs in real time with status, version, and duration.

Version-safe deployments

Deploy a new version while a workflow is running:

desk deploy --dir ./my-workflow-app \
  --version v2 \
  --hostname my-workflow-app.plt \
  --profile skew-protection

The in-flight run on v1 continues executing on v1 pods. Queue messages are routed by deployment version — v1 messages go to v1 pods, v2 messages go to v2 pods. You can verify this in the ICC dashboard:

1. Open the Watt detail page — the Deployments panel shows v2 as Active and v1 as Draining
2. Open the Workflows tab — the running v1 run still shows Version: v1 and continues to completion
3. Start a new workflow — it runs on v2

ICC only expires the v1 version when the Workflow Service confirms there are no active runs, pending hooks, waiting sleeps, or queued messages for v1.

Replay on a draining version

You can replay a completed workflow even while its version is draining. In the run detail view, click Replay — the new run targets the original deployment version (v1), not the latest. This proves that draining versions remain fully functional for workflow traffic.

Inspect a run

Click any run in the Workflows tab to see:

• Trace — waterfall of every step with timing bars and parallel execution
• Graph — directed graph of the workflow structure
• Events — raw event log with expandable payloads
• Hooks — registered hooks/webhooks with status
• Streams — data written via getWritable()

See the Workflows UI documentation for details.

Clean up

desk cluster down --profile skew-protection
